VS/GS100

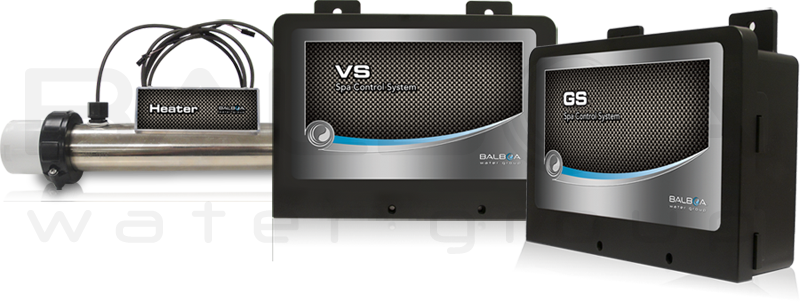

VS100_GS100_HeaterWithSystem_v3

System Specifications VS/GS100

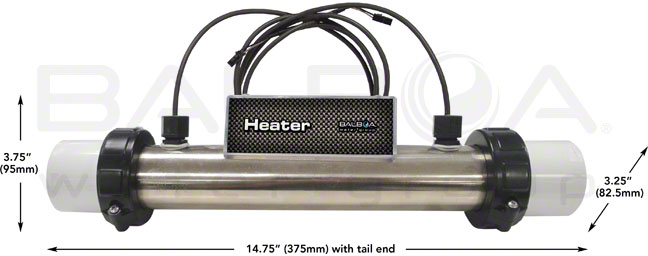

Heater Measurements

System Measurements

• Great for Tight Spaces
• 10" Remote M7 Heater Tube
• Patented Piezo Panels
• Runs 1 Pump/Light/Ozone

M7 Application Guidelines

Downloads:

VS100 System Specifications
Material No. With Descriptions	System Outputs	Lighting Options
54821-XX* KIT BALBOA VS100 1.0KW 120V HTR GFCI	60Hz System Heater - 1kW Heater @ 120V, GFCI cord 1.5" x 10" Separate Heater Supports: 1, 2 Speed Pump 10V Light Ozone 120V/240V Switchable	MoodEFX Lighting
54808-XX* KIT BALBOA VS100 1.0KW 120V HTR	60Hz System Heater - 1kW Heater @ 120V, No GFCI cord 1.5" x 10" Separate Heater Supports: 1, 2 Speed Pump 10V Light Ozone	MoodEFX Lighting
54805-XX* KIT BALBOA VS100 4.0KW 240V HTR	60Hz System Heater - 4kW Heater @ 240V 1.5" x 10" Separate Heater Supports: 1, 2 Speed Pump 10V Light Ozone 120V/240V Switchable	MoodEFX Lighting
GS100 System Specifications
Material No. With Descriptions	System Outputs	Lighting Options
54807-XX* KIT BALBOA GS100 2.0kW 240V HTR	50Hz System & Heater - 2kW Heater @ 230V 1.5" x 10" Separate Heater Supports: 1, 2 Speed Pump 10V Light Ozone	MoodEFX Lighting
54806-XX* KIT BALBOA GS100 3.0kW 240V HTR	50Hz System & Heater - 3kW Heater @ 230V 1.5" x 10" Separate Heater Supports: 1, 2 Speed Pump 10V Light Ozone	MoodEFX Lighting

Compatible Topside Panels

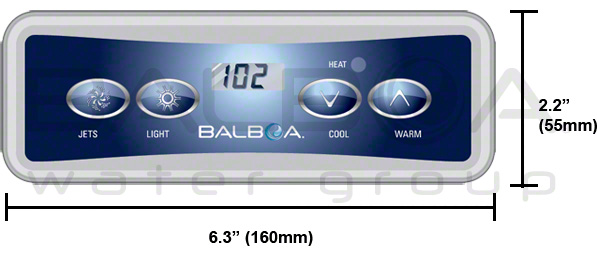

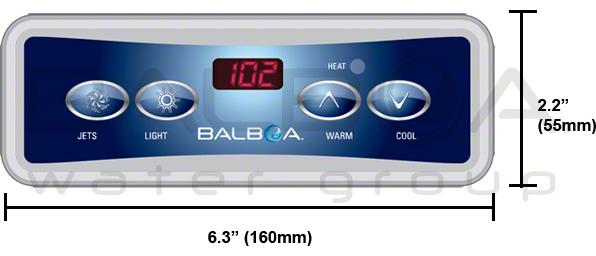

Panel VL401 (For Duplex Systems) Material No.: 52424-XX: no overlay 54665-XX: with overlay (11885)	Panel VL403 (Lite Digital) Material No.: 54130-XX: no overlay 52345-XX: with overlay (11448) 54104-XX: with overlay (10752) 54105-XX: with overlay (10753) 54664-XX*: with overlay (11884)

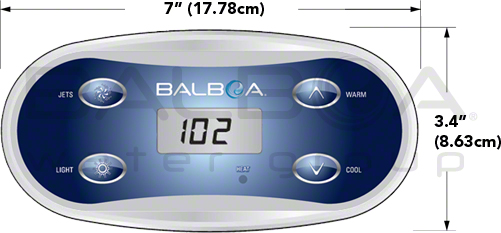

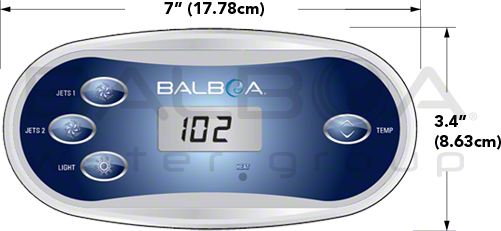

Panel VL406U (For Duplex Systems) Material No.: 55416-XX: no overlay 50195-XX: 18' cable 50210-XX: 10' cable 50222-XX: 25' cable 55349-XX: with overlay (12051) 55570-XX: with overlay (12438) 50217-XX*: with overlay (11947)	Panel VL406T (For Duplex Systems) Material No.: 55413-XX: no overlay 50195-XX: 18' cable 50210-XX: 10' cable 50222-XX: 25' cable 55570-XX: with overlay (12051) 50217-XX: with overlay (12438)

* = XX represents the latest model revision. (Ex. XX will be replaced by 01, 02, 03 etc.) When an order is placed the latest model will be pulled.
